FANQUN Spray Dryer
FANQUN’s spray dryer offers extremely high speed to transform liquids into free-flowing powders, enhancing the evaporation efficiency while also preserving heat-sensitive materials.
- The spray dryer is made of 316L stainless steel to achieve low residual moisture below 0.5%;
- Materials that feature 40%- 60% moisture content, or special materials up to 90%, all can be dried by the spray dryer;
- The spray dryer offers a wide processing capacity range around 50 L/h to 5,000 L/h;
- FANQUN’s spray dryer efficiently protects heat-sensitive materials, ensuring no loss of components.
- All of FANQUN’s spray dryers have obtained international certifications such as ISO 9001.
Technical Specifications
| Machine Material | 316L stainless steel, ≤0.5% residual moisture |
| Feed Rate | Around 50 L/h to 5,000 L/h |
| Drying Capacity | Liquids that feature 40%- 60% moisture content(special materials up to 90%) |
| Atomization Method | Pressure, centrifugal power, two fluid nozzle, etc |
| Model Number | LPG, YPG, ZLPG |
| Certification | ISO 9001, and more |

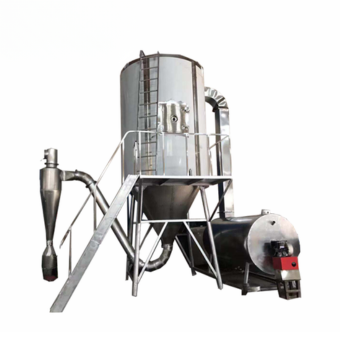

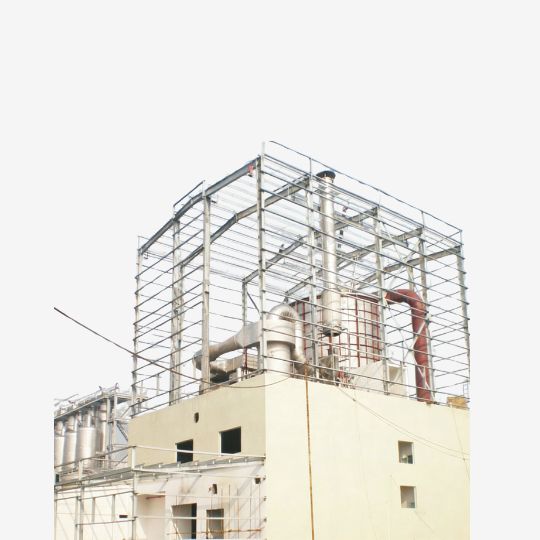

The speed of LPG series centrifugal spray dry is very fast.In general,it needs 5-15 seconds so the material can be dried momentarily,it is suitable for drying thermal sensitive raw materials.

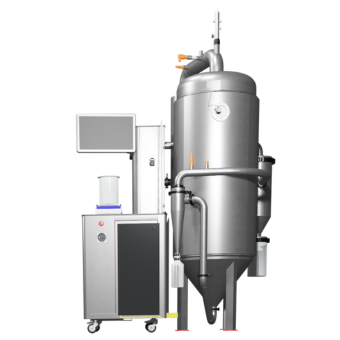

PFQ-LPG-ZK vacuum spray drying takes place at lower temperatures with shorter residence times; therefore, it is suitable for temperature-sensitive materials such as proteins, fermented microbial cells, and active plant extracts.
The machine adopts full seal form.All parts are made of stainless steel.It is equipped with three grades of purifying apparatus.The filtered air reaches the requirement of one hundred thousand grades.

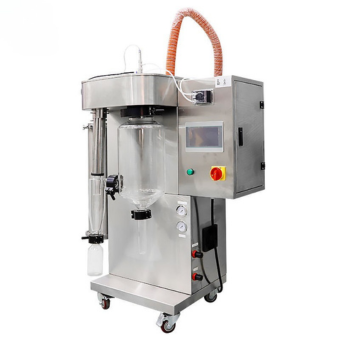

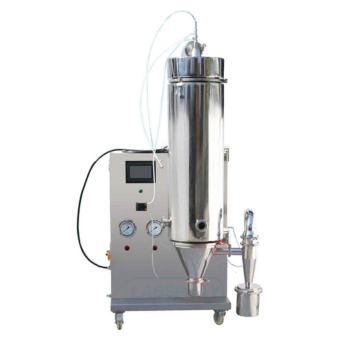

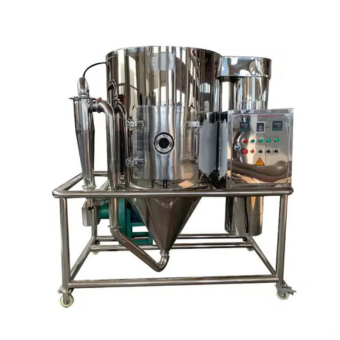

The PFQ-LPG-XX mini spray dryer performs the same function as conventional spray dryers but in a smaller, more manageable format. This enables its use for small-batch projects.
It can run automatiically or manually for monitoring purposes. Has LCD touch scree for easy operation.
Designed with wheels for easy moving and compact structure that fits well in small spaces.
High-temperature tolerance can handle maximum inlet temperature. SS304, SS316L, Titanium, Hastelloy material.

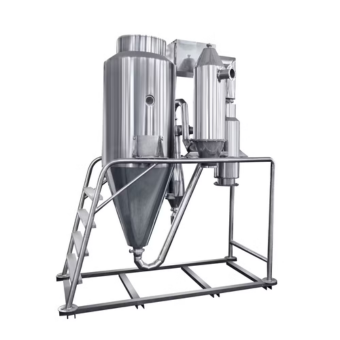

Full-automatic control, It adopts large color touch screen. Ensures easy data transfer and analysis.
Easy to operate. Continues automatic drying process and easy parameter adjsuting.
Easy control and operation. Good adjustability. High in their purity and good quality.
We offer full customization design according to your specifications. Build materials like AISI 316 ensuring durability.

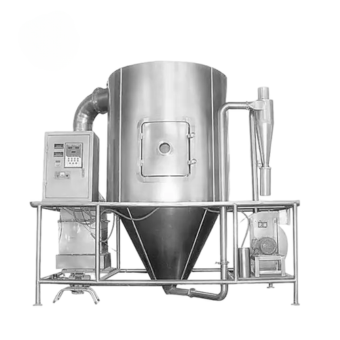

Widely used in chemical industry, plastic and resin, and food industry. Easy to clean and high efficiency.
What is Spray Dryer
A spray dryer is a type of machine that converts liquid materials into solid powders, making the material easy to store, transport, and use. It supports handling various liquid materials such as slurries and suspensions and atomizes them into fine droplets. In a short time, the machine can evaporate the moisture of droplets by hot air. FANQUN’s sprayer dryer is widely used in various industries due to its high efficiency and stability.
Working Principle of Spray Dryer
- Step 1: Before drying the liquid, it must be firstly atomized into fine droplets. This step is mainly completed through the high-pressure nozzle of the spray dryer. It offers high pressure to atomize the liquid material completely and spray it into a drying chamber.
- Step 2: Fine droplets are fully mixed with hot air in the drying chamber. The spray dryer precisely controls temperature and airflow of the process, achieving rapid drying within a short time. The water of droplets is evaporated, while also ensuring their compositions do not be damaged.
- Step 3: After the moisture is evaporated, you can obtain dry and uniform solid powder. The spray dryer is also equipped with a cyclone separator or filter to separate the powder and air, obtaining the required products. While the air is then discharged.
Types of Spray Dryer
The spray dryer can be classified into three types based on its atomization methods, including pressure spray dryer, centrifugal spray dryer, and two fluid nozzle spray dryer. Learning their features may help you make a better purchase decision.

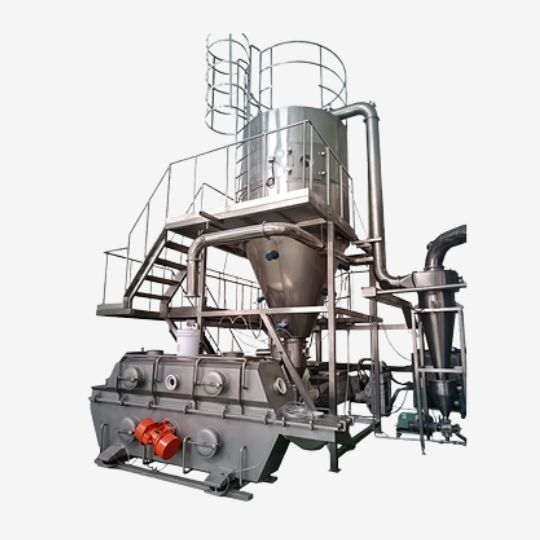

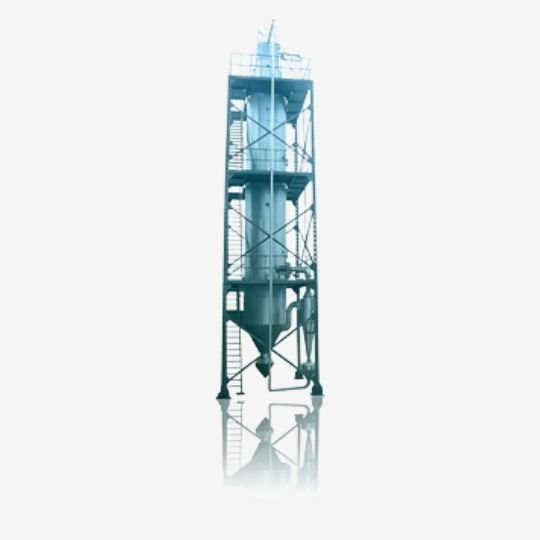

Pressure Spray Dryer
A pressure spray dryer relies on a pump with high pressure like a piston pump to force the liquid materials to 2- 25 MPa or higher. It offers strong pressure to help the liquid material through an extremely fine nozzle, atomizing it into droplets. The droplets then contact with hot air and are dried into solid powder. The pressure spray dryer can generate even and fine particles. It is widely used for flavors, milk powder, detergents, and more.

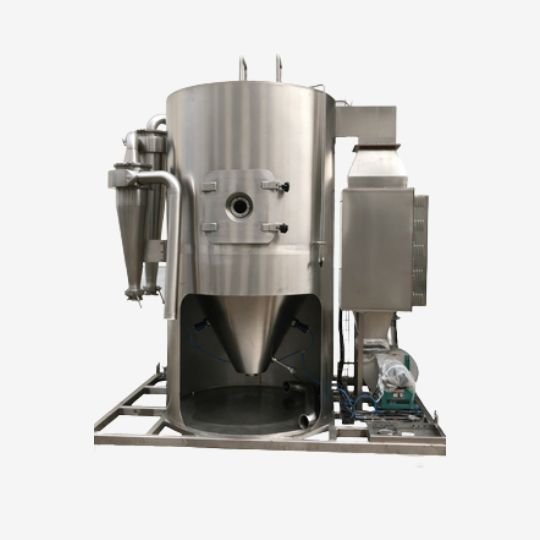

Centrifugal Spray Dryer
If your project involves materials with high viscosity or high solid contents, a centrifugal spray dryer is more suitable choice. It uses an atomized disc that rotates with high speed to handle liquid materials, while supporting generating different particle sizes. With the help of centrifugal power, the atomized disc can throw out the liquid material into fine droplets and dry them. The centrifugal spray dryer does not need nozzles, reducing clog issues. However, this type of spray dryer features large volume and requires relatively big printfoot.

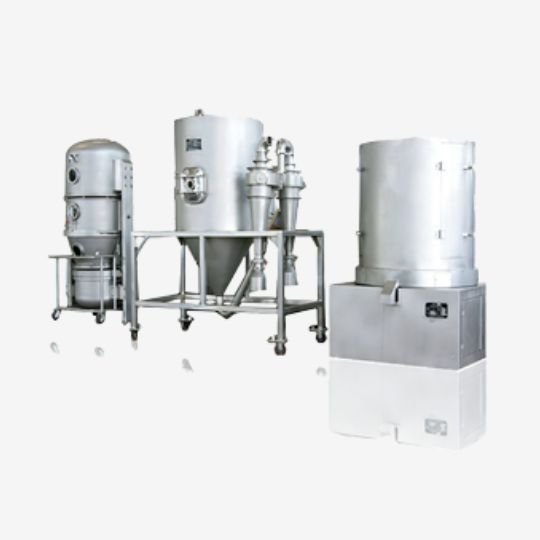

Two Fluid Nozzle Spray Dryer
The two fluid nozzle spray dryer atomizes fluid materials through compressed air or steam, then mixes them with hot air thereby drying them into powder. It supports handling fluids with high viscosity and some suspensions. The powder generated by the two fluid nozzle spray dryers is extremely fine, which can reach 10- 50 μm. It is especially suitable for high value-added products, such as pharmaceuticals, advanced pigments, and nanomaterials.
Advantages of Spray Dryer
Excellent Product Quality
Products generated by the spray dryer feature excellent fluidity and uniformity. This machine can evaporate approximately 95%- 98% moisture of the fluid material and offer high speed of drying. According to the high-speed drying process, the spray dryer retains most of the heat-sensitive components in liquid materials. This can improve the purity of the product while also ensuring its flavor and nutrition. It is also made of 316L stainless steel to remove residual moisture below 0.5%, reducing effects to the raw materials.
Production Controllability
Some terminal products have various demands on the particle size, shape and fluidity of the product, and the spray dryer can meet different unique requirements. You can precisely control the particle size, bulk density, and moisture content of the product within a certain range. For different types of liquid materials, the spray dryer supports changing operating conditions to achieve precise control.
High Efficiency
Unlike the traditional drying methods, the spray dryer does not need crushing, screening, and other additional processes. It directly dries liquid materials with the supports of various power and hot air, reducing the process flow thereby significantly enhancing operation efficiency. The spray dryer also offers high-speed drying, and the drying time for a unit droplet only takes a few seconds or even a few milliseconds. In addition, it can achieve continuous production to improve the production capacity of the equipment.
Significant Cost-effectiveness
The spray dryer can dry liquids with high moisture content into solid powder, decreasing their volume and weight. This significantly saves your costs on transportation and storage and reduces loss caused by liquid deteriorations by extending the shelf life of the product. The spray dryer is equipped with energy recovery systems and supports customizable configurations to reduce operating costs by 25%. For expensive raw materials, the spray dryer can achieve high powder yield around 95% or higher, minimizing raw material waste.
Wide Applications
Whatever dilute solution or high-viscosity slurry, the spray dryer offers high flexibility to handle different materials. You can choose different types of the spray dryer to meet actual requirements. By adjusting the process parameters, it can be widely used in multiple industries. The spray dryer also obtains many international certifications to suit different applications such as medical, agriculture, and more.
How to Select Proper Spray Dryer
When selecting a proper spray dryer for your project, you should consider comprehensive factors to ensure the machine you choose can meet actual demands. The following are common factors for your reference:
- Material Properties: Before choosing the spray dryer, you should firstly analyze the properties of raw materials, such as solid content, viscosity, heat-sensitive features, and more. Based on these basic parameters, you can determine the processing demands and target powder properties.
- Types Selection:
| Advantages | Suitable Applications | |
| Pressure Spray Dryer | Small particle size, good flowability, low energy consumption | Food liquids, medium-to-high viscosity suspensions and emulsions |
| Centrifugal Spray Dryer | Wide range of adjustable particle sizes, not easy to clogging | Materials with high viscosity, high solids content, or fibers |
| Two Fluid Nozzle Spray Dryer | Support handling materials with high viscosity, high drying speed, easy to maintain | Low viscosity, heat-sensitive, high solids content |
- Core Parameters: You should also focus on the core performance parameters of the spray dryer to determine if the machine can meet your project demands. They mainly include temperature of the drying air, powder yield, energy consumption, efficiency, and more.
- Application Demands: Different applications feature various unique requirements and demands. For example, if your project involves the medical and food industry, you must determine the spray dryer to obtain cleanliness certifications. For the chemical industry, the spray dryer should also be equipped with an explosion-proof design.

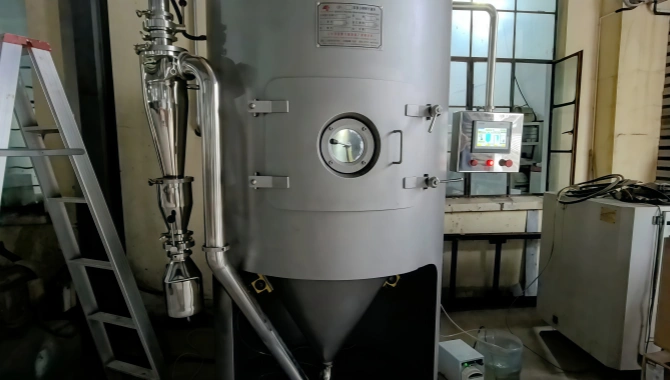

- After-sale Service: It is better to choose famous and reliable brands and suppliers to ensure stability of the spray dryer. If your equipment fails, they can respond in time, reducing production loss caused by downtime. You can also choose the supplier that offers testing services to make a better purchase decision.
Spray Dryer Applications
Food Industry
Due to its significant advantages on protecting heat-sensitive ingredients, the spray dryer is widely used in the food industry, especially for dairy products. This includes powdered milk, coffee powder, seasoning powders, and high-end additives. The spray dryer effectively preserves the activity of food components while achieving large-scale continuous production. It transforms liquid materials or slurries with high viscosity into fine and uniform powder, retaining nutritional value while enhancing product stability.
Chemical Industry
The chemical industry typically involves solutions with high solid content and suspensions, and has strict demand on the shape, size, and flowability of the powder. The spray dryer generates uniform powder particles and is available to control the features of final products by adjusting processing parameters. It can handle various inorganic salts, oxides, catalysts, and polymer powders, ensuring consistency and stability of the powder.
Pharmaceutical Field
Spray dryers are also widely used in the biopharmaceutical and medical fields, which demands efficient preservation of heat-sensitive and active ingredients. The spray dryer offers quick evaporation rates and supports operating within low temperature, thereby protecting drug efficacy from thermal degradation. It also meets GMP and other environmental cleanliness demands, preventing any pollution to the products. The solid powder produced by the spray dryer possesses stable particle sizes, improving dissolution rates to maximize therapeutic effects.
New Energy Materials
The spray dryer used for the new energy materials supports various advanced processes such as granulation, mixing, and coating. It is mainly used to produce cathode materials for lithium batteries, ensuring the stability of products. The spray dryer also supports drying waste materials to achieve harmless treatment, making the materials be recycled and reused to meet the requirements of sustainable development.
Agriculture
The agriculture industry including WP, WDG, fertilizer granules, and adsorbent powders can be generated by the spray dryer to achieve high yield. It helps you decrease the transportation and storage costs. The chemical properties of solid powder are more stable than the fluid materials. So the spray dryer enhances storage stability of pesticide formulations, preventing degradation and caking.
FANQUN features a mature production line and advanced technology to produce reliable spray dryers for you. We have accumulated more than 30 national patents, while also trusted by 300+ clients worldwide. If you have any questions about the spray dryer, please feel free to contact us for a solution.
The energy consumption of a spray dryer depends on various factors, such as moisture content of materials, heat source types, and more. Different types of the spray dryer may generate different energy consumption levels. You can equip a heat recovery device for the machine to save energy. The increased solid content of raw materials is also helpful to reduce energy consumption.
The spray dryer equipped with a closed-loop nitrogen spray drying system can be used to handle organic solvent. This system features explosion-proof design and nitrogen protection.It will help you to prevent explosion risks and achieve solvent recovery. It is suitable for resins, flavorings, and organic salts.
Yes. FANQUN’s spray dryer is equipped with a PLC system to achieve remote and automated control. It supports highly automated processing and offers fault detection and alarm functions. The process data such as temperature, airflow, humidity, spray pressure can be logged for traceability. You can use it to achieve digital factories.
