Features of FANQUN Fluid Dryer
FANQUN’s fluid dryer contains various types such as spray dryer, flash dryer, fluid bed dryer, and more, ensuring excellent product quality while also improving drying efficiency.
- The dryer used for producing powder offers high drying efficiency to save energy consumption;
- Fluid dryer ensures excellent product quality, including highly consistent particle size, high solubility, and more;
- Features high compatibility and mild drying process, suitable for heat-sensitive materials;
- FANQUN provides various types of fluid dryers to handle different materials from high viscosity to low viscosity;
- All of FANQUN’s dryers have obtained ISO 9001 certification.
PFQ-GYPG-FM Fluid Dryer
GYPG series broac-specirum high-pressure spray dryer(“95” scientific research project in China). The machine adopts a full seal form. All parts are made of stainless steel. It is equipped with three grades of purifying apparatus. The filtered air reaches the requirement of one hundred thousand grades.
An automatic washing device is installed at the place where raw material passes. adaptability. Through adjusting the pressure of high pressurepump for raw material supplying, the atomizing pressure can reach 1-20 Mpa. It can meet the requirements for drying immersed ointment of traditional Chinese medicine containing 20-30% of solid content. The average size of the finished product will be 40-120 mesh. Because its size is large, the granulating procedure can saveand the one-step drying can be realized.
Meanwhile, it can also return the powderto granulate again to increase the size of the granule and decrease the ratio of powder in the finished product and make the granule uniform. The bulk density of finished product is small. Its dispersivity, fluidity and solubility are good. It is suitable for making drinking agent, powder agent or capsule raw material medicine of traditional Chinese medicines or compound preparations.
Principle of PFQ-GYPG-FM Fluid Dryer
The broad-spectrum high-pressure spray dryer is an application of pressure atomization drying technology for special raw materials. In other words, it is a drying apparatus that sends the raw material to the nozzle via a high-pressure pump, dispersing it into a fine mist that makes full contact with a parallel stream of hot air. In this way, drying is completed instantaneously, resulting in a finished product in powder or granule form.
The differences between the broad-spectrum high-pressure spray dryer and ordinary pressure dryers are as follows: it employs a primary, intermediate, and high-efficiency three-stage filtration system; it uses low-temperature hot air in large volumes, thereby preventing the active ingredients of traditional Chinese medicines from volatilizing or decomposing. The raw material, which solidifies instantly, does not adhere to the wall. It integrates low, medium, and high-pressure atomization in one body and solves the technical challenge of cleaning the tower and pipes. The equipment has passed state-level inspection and acceptance, receiving high praise from experts.
Features of PFQ-GYPG-FM Fluid Dryer
- The tower body is equipped with an automatic vibration and knocking device.
- The tower body and pipeline are fitted with quick-open cleaning ports and drain holes.
- A thermostatic feeding tank is provided.
- Raw material filtration system is included.
- High-pressure tower washing accessories are supplied manually.
- All parts in contact with raw materials are made entirely of stainless steel.
- Material collection uses a two-stage cyclone separator (standard cyclone separator) or a one-stage cyclone separator plus a one-stage wet scrubber.
- The inlet air temperature can be controlled automatically.

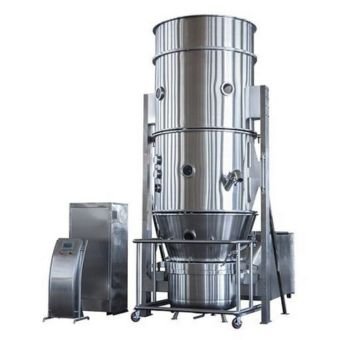

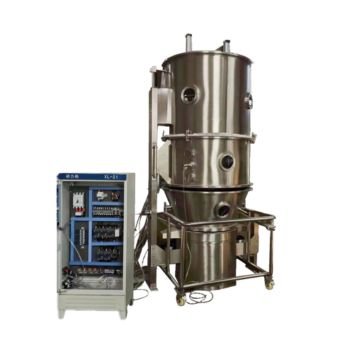

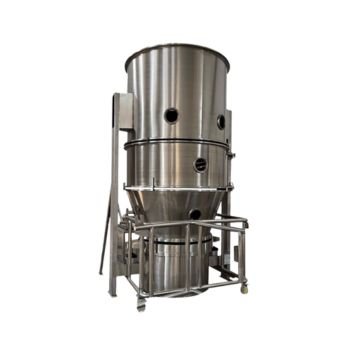

A steam heating method stainless steel material top spray fluid bed drying equipment with 33kW power and customizable voltage.
An automatic and multifunctional 304 stainless steel material custom voltage and kW power powder drying fluid bed dryer machine with custom heating methods available.

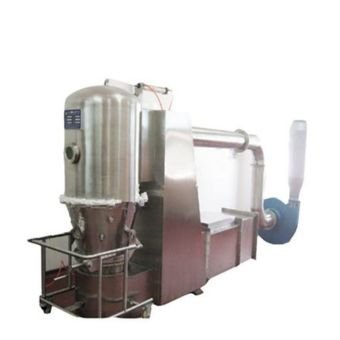

An energy saving high quality carbon steel material fluidized bed dryer with high efficiency and a 140-415 kilogram steam consumption per hour.

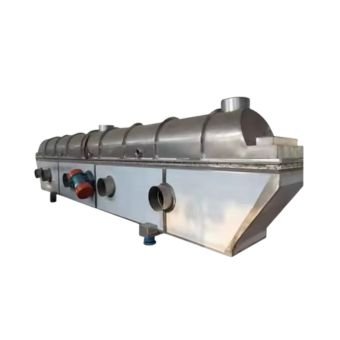

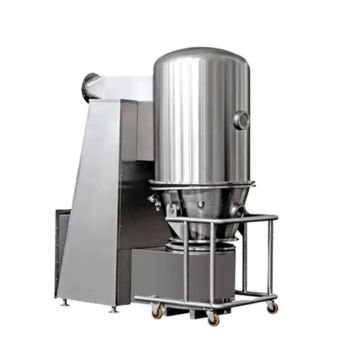

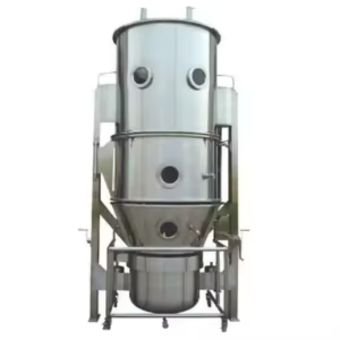

A low energy consuming with high efficiency adjustable temperature fluid bed drying machine with a customizable size and dimension.

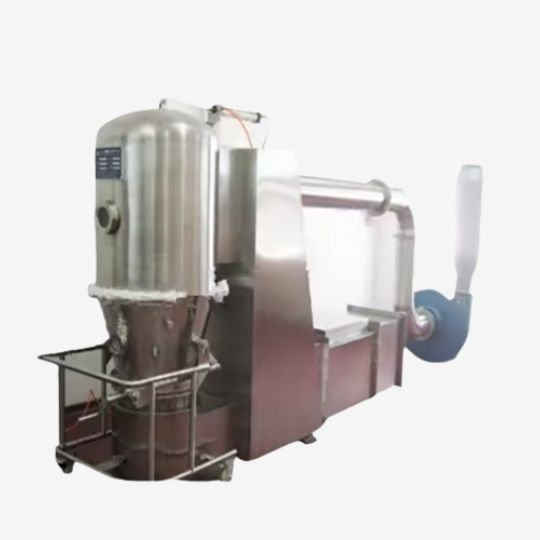

A custom heating method automatic and multifunctional industrial fluid drying machine with custom voltage and kW power available.

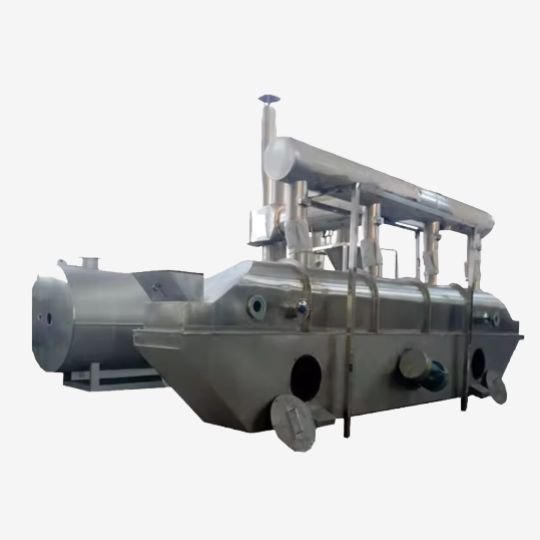

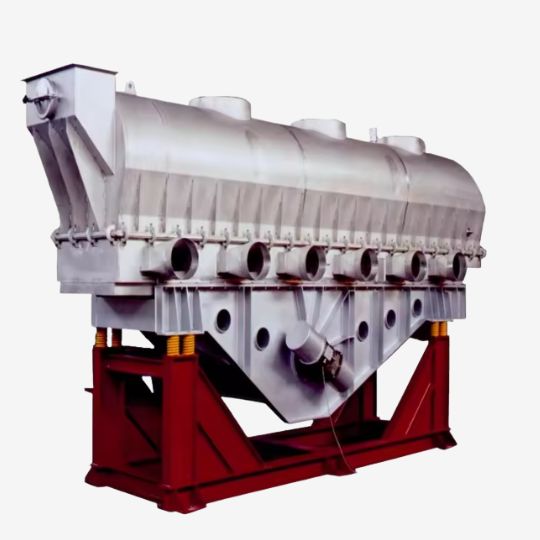

A steam heating stainless steel material 380V and 11kW power continuous vibrating fluid bed drying machine for chemical and food processing.
A steam heating method fluid bed drying equipment with a competitive price and high drying efficiency and has a large maximum capacity.
A high capacity and high efficiency industrial stainless steel fluid bed dryer with an oil heating method and a customizable kW power and voltage.
- Our Factory
- Technical Parameters
| Model | GYPG-25 | GYPG-50 | GYPG-100 | GYPG-150 | GYPG-200 | GYPG-300 | GYPG-300-5000 |
| Evaporated amount of moisture (kg/h) | 25 | 50 | 80 | 100 | 150 | 200 | 300-5000 |
| Treated amount of raw material liquid (kg/h) | 31.57-47 | 63.14-94 | 126.28-188 | 189.42-282 | 252.56-376 | 378.84-564 | To be determined as needed |
| Output of finished product (kg/h) | 6.85-22 | 13.70-44 | 27.40-88 | 41.1-132 | 54.8-176 | 82.2-264 | To be determined as needed |
| Solid content of damp raw (%) | 20-45 | ||||||
| Ratio of moisture of product (%) | 3-5 | ||||||
| Electric power (kW) | 50 | 82 | 117 | 150 | 238 | 320 | To be determined as needed |
| Heating source | Steam plus electricity | ||||||
| Collecting way of product and its efficiency | Two-grade cyclone cluster or one-grade cyclone cluster and one-grade damp cluster | ||||||
| Automatic control meters and instrument | Indicator of temperature of hot air and humidity of air exhaust | ||||||
| Temperature of air in (℃) | 150-200 | ||||||
| Temperature of air out (℃) | 80-100 | ||||||
| Overall dimensions (L×W×H) (mm) | Ø145×1500×9300 | Ø875×1700×11300 | Ø7765×1980×14500 | Ø8785×2650×17000 | Ø9700×2800×18700 | Ø10900×3000×21000 | To be determined as needed |
Common Dryers Used for Powder
Based on different types of powder materials, you can choose different dryers to meet the actual demands. Learning their features and advantages may help you make a better purchase decision. The following are common dryers used for powder:
Spray Dryer
Working Principle
The spray dryer is the most common type used to produce powder. It features an atomizer to atomize liquids into fine droplets. Then it spray the droplets into the drying chamber to dry them through hot air. The spray dryer offers high drying speed to evaporate water content of the droplets, generating uniform powers with good flowability.
Advantages
- High Efficiency: The drying process of a spray dryer used for powder can be controlled within the range of 5- 15 seconds. The machine also features high drying capacity within a range of 50L/h to 5,000L/h. The spray dryer achieves continuous operation to handle a large amount of liquid materials, making it suitable for large-scale projects.
- Excellent Product Quality: Powders produced by the spray dryer typically feature excellent flowability, dispersibility, and solubility. By adjusting the atomizer types, drying temperature, and other key parameters, you can control particle sizes, density, and bulk density of the finished products.
- High Compatibility: The spray dryer is flexible to handle different types of materials such as solutions, emulsions, suspensions, and slurries. It is widely used in various industries. In addition, due to its extremely high drying speed, the spray dryer is also suitable for heat-sensitive materials to preserve active components.
Limitations
The spray dryer also has some limitations. Its structure is relatively big to consume more energy, which may increase your costs. For materials that are extremely sensitive to heat, the spray dryer is not suitable. It also has strict demands on the viscosity of raw materials to prevent sticking issues.
Drum Scraper Dryer
Working Principle
A drum scraper dryer is a type of contact drying device, which features one or two rotary drums. Raw material can be sprayed or coated on the drum and rotate following the drum. The rotary drum of a drum scraper dryer is heated evenly by steam, thermal oil, or hot water, to evaporate the water content. The drum scraper dryer is also equipped with a scraper to remove dried flake materials, which can be pulverized into powders.
Advantages
- High Thermal Efficiency: The drum scraper dryer offers high thermal efficiency that can reach 70%- 80% due to its short heat transfer path. Thereby making its energy consumption lower than a spray dryer when evaporating the same water contents.
- High Drying Capacity: For slurries, pastes, and other high-viscosity materials, the drum scraper dryer offers high capacity to handle them. These materials will form thin layers on the drum surface to accelerate drying time while also preventing clogging issues. You can also adjust the rotation speed and temperature of the drum to control product porosity and dissolution rate.
- Low Footprint: The structure of drum scraper dryers is simple, making it easy to maintain. It also achieves a compact footprint to enhance the production capacity per unit area.
Limitations
The drying area of a drum scraper dryer is limited by the drum surface area, which means you may need multiple machines to complete large projects. The drum scraper dryer is also not suitable to handle too thin fluids or extremely heat-sensitive materials. In addition, final products of the drum scraper dryer are flake or scale-like. You need to purchase another machine or add an additional grinding process to produce powders.
Fluid Bed Dryer
Working Principle
The fluid bed dryer is one of the most widely used methods in the industry, and is suitable for granular, powdered, and flaked materials. In short, the hot air flows through the material bed, suspending particles to achieve a uniform heating and drying process. Particles are lifted by the air flow, achieving a complete mix.
Advantages
- High Efficiency: The fluid bed dryer offers fluidization to the materials, ensuring complete contact between materials and hot air flows. This not only improves the drying efficiency, but also enhances the thermal utilization of the dryer.
- Uniform Drying: Raw materials are mixed within the bed intensely, which significantly prevents localized overheating or uneven drying failures. The uniform drying process improves consistency of finished products to ensure high quality. Its temperature can be also controlled based on actual demands to handle heat-sensitive particles.
- Flexible Process: This type of fluid dryer supports continuous operation and offers multiple functions within the single machine. It achieves integrated drying and cooling to build a highly automated production line. You can control the airflow, temperature, and time of the fluid bed dryer to precisely adjust the drying process.
Limitations
The fluid bed dryer has strict demands on the particle sizes, material viscosity, and humidity content. The physical properties of raw materials are key limitations when using a fluid bed dryer. In addition, the intense fluidization process requires a large amount of energy and may cause collision wear between particles.
Spin Flash Dryer
Core Advantages
- Rapid Drying Process: The spin flash dryer offers a combined state of fluid bed and airflow drying. Raw materials are instantly dispersed into fine particles to mix with hot air（up to 400 °C) completely. The dryer achieves extremely high heat transfer efficiency to accelerate the drying time.
- High Capacity: The biggest advantage of the spin flash dryer is that it supports handling paste-like and filter cake materials without pre-crushing and pre-granulation steps. It achieves a wide range of particle sizes within 10μm to 2mm. This significantly shortens the drying process thereby saving energy consumption and improving drying efficiency.
- Prevent Clogging: This machine prevents sticking and clogging issues by its continuous rotation of the bottom agitator. In addition, the materials in the drying chamber are in suspension to rotate following hot air, which prevents localized overheating.
Applications
Due to its unique advantages, the spin flash dryer is widely used in the chemical industry, including pigments, dyes, inorganic salts, and catalyst filter cake. It can be also used to handle various metal hydroxide or industrial sludges, meeting the environmental protection demands. If you want to use the dryer in the food industry, you should ensure that it obtains certain certifications.
How to Select Suitable Fluid Dryer
A suitable fluid dryer is important to improve high product quality. When selecting the dryer for your powder project, you should consider comprehensive factors to ensure the machine you choose can meet actual demands. The following are common factors for your reference:
Material Properties
Before selecting the dryer, you should firstly determine the properties of raw materials. It includes water content, thermal sensitivity, particle size, viscosity, and others. Different materials have unique demands on the dryer. For example, the spray dryer is more suitable for some materials with extremely high thermal sensitivity to preserve their active components. While for common materials, a flash dryer offers better cost performance.
Process Requirements
You should also determine if the project has special demands on the drying process such as production methods, product quality, or machine functions. If your project requires large-scale and continuous production, the spray dryer, fluid bed dryer, and belt dryer is more suitable. A disc dryer is more commonly used to handle small batch projects. In addition, you should also consider if the project has demands for integration with granulation and pulverization.
Actual Factory Conditions
Based on the actual factory conditions, you can choose the most suitable fluid dryer to make it better integrate into the existing layout. Before making the decision, you can measure the height and footprint of your factory to determine the size of the fluid dryer. You should also determine energy availability to choose a suitable heat source and prepare exhaust gas treatment for the dryer.
Industry Demand
If your project involves special industries such as chemical, food, or pharmaceutical, the fluid dryer you choose must feature the certain compliances and certifications. Ensure that the dryer can meet industry demands on material, cleaning methods, and surface. You can request the supplier to provide supporting documentation when selecting the fluid dryer.
As a professional dryer supplier in China, FANQUN features advanced dryer design technology and mature production lines. We ensure high product quality and provide reliable fluid dryers for you to build smart factories. If you have any questions about the fluid dryer, please feel free to contact us for the latest updates and solutions.
Unstable water content of the powder may be caused by various factors. Common factors causing this issue include unstable airflow or temperature, uneven fluidization, and obstructed airflow. You can check the key parameters of the drying process to determine if the machine is damaged or the material is not suitable.
A spray dryer requires high-temperature hot air and large air volumes to achieve rapid evaporation, thereby consuming more energy than other dryers. You can equip a waste heat recovery system or variable frequency fan to collect additional heat and adjust the drying process flexibly. Improving the solid content of materials is also helpful to save energy.
Yes. The fluid dryer is typically made of 304/316L stainless steel to maintain high cleanliness grade. The contacting components of a fluid dryer can be produced by materials with high corrosion resistance. The dryer also obtains certifications of the food industry such as FDA.
